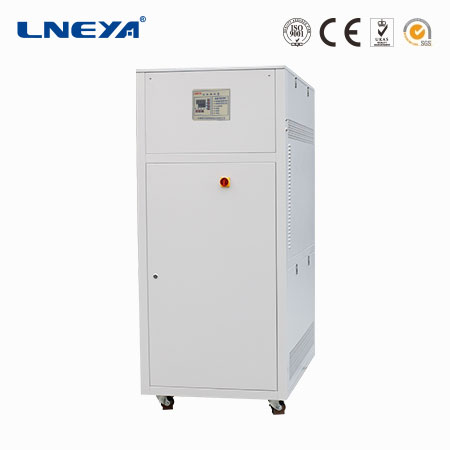

Heating Circulator

UC 50℃~300℃

Heating Power3.5kW~130kW
Cooling power1kW~130kW
Power range5kW~136kW
Temperture accuracy±0.5℃

INQUIRY

Single heating equipment

High temperature cooling process, achieving continuous heating and cooling

Fully enclosed system, heat transfer oil will not be oxidized or browning

Temp. Control 50~300℃, Temp Accuracy of ±0.5°C

Heating Circulator UC series with function from high temperature to cooling process, from 300℃~50℃.
Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
Can heat-up and cool-down continuously.
The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
With function of internal PT100 for correcting internal circulation.
The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.

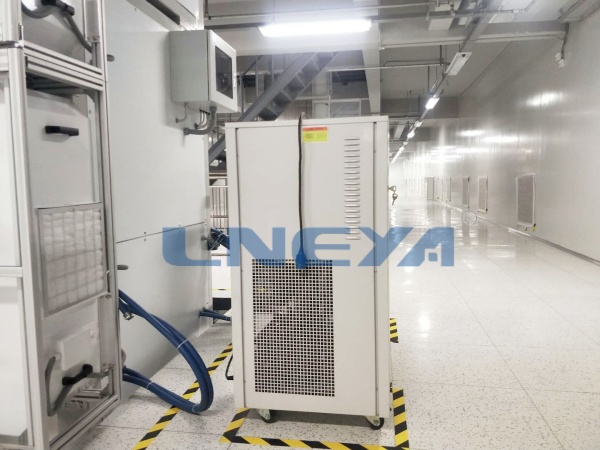

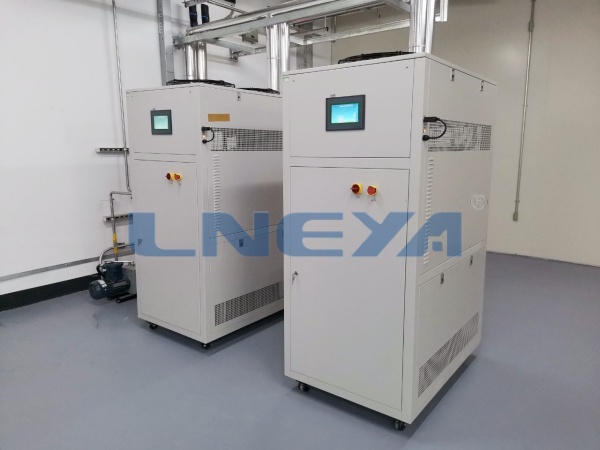

Suitable for more usage scenarios

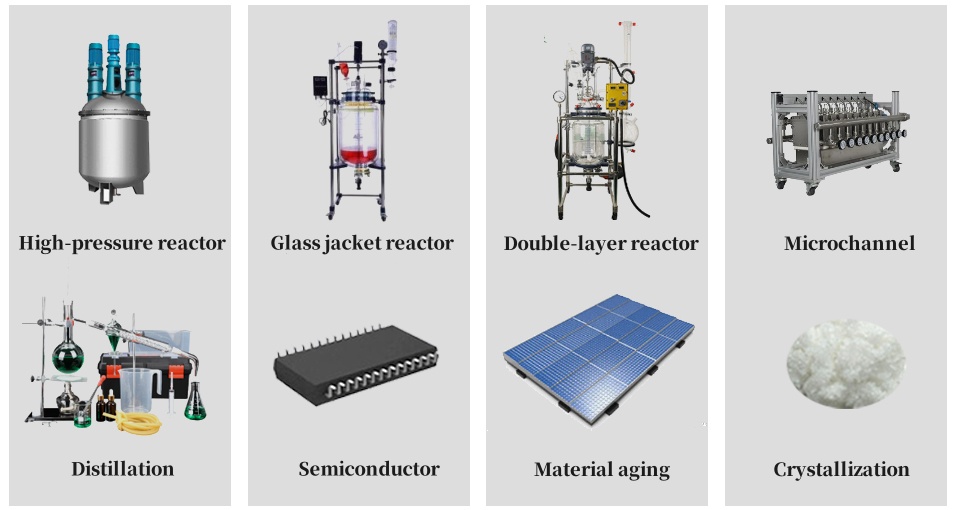

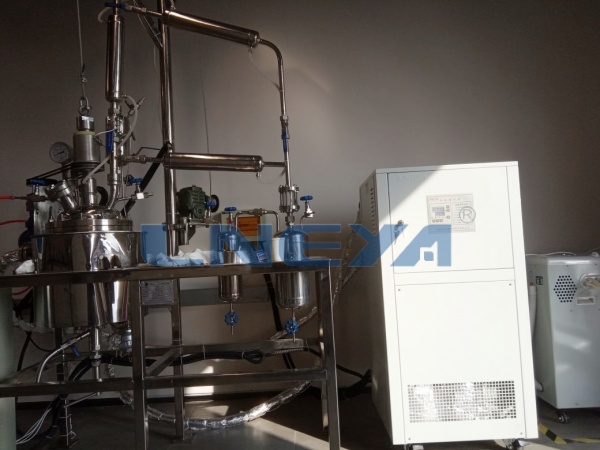

Various reactors (microchannels, glass, jacket reactors, etc.), distillation or extraction systems, laboratories, universities, research institutes, aerospace, chemistry, pharmaceuticals, petrochemicals, biochemistry, medical, hospitals, research and development workshops, aerospace and biology industries.

Model		UC-5530N	UC-7530N	UC-A1030N	UC-A1530N	UC-A2530N	UC-A3830N	UC-A6030N	UC-A9530N	UC-A13030N
Temp range		50℃～300℃
Controller		PID adaptive controller
Temp control		Heat-conducting medium outlet temp. control
Display/Record		7-inch color touch screen，recording temperature curve，data export using excel format
Temp feedback		Heat-conducting medium temperature feedback Pt100
Temp accuracy		±0.5℃
Heating power KW		5.5kW	7.5kW	10kW	15kW	25kW	38kW	60kW	95kW	130kW
Cooling Capacity kW at	300℃	5.5kW	7.5kW	10kW	15kW	25kW	38kW	60kW	95kW	130kW
	200℃	5..5kW	7.5kW	10kW	13kW	25kW	38kW	60kW	95kW	130kW
	100℃	4kW	5kW	7kW	12kW	20kW	30kW	48kW	76kW	100kW
	65℃	1.8kW	2.2kW	3kW	5kW	8.5kW	12kW	19kW	30kW	40kW
Criculation pump flow		Max35L/min 1.2BAR	Max50L/min 1.2BAR	Max50L/min 1.2BAR	Max110L/min 1.5BAR	Max150L/min 1.5BAR	Max200L/min 1.5BAR	Max250L/min 2.5BAR	Max400L/min 2.5BAR	Max400L/min 2.5BAR
Heater		Flanged pipe electric heater
Independent temp. limite		Lneya
Cooler		Copper Tube Aluminum Fin air-cooled Condenser			Plate heat exchanger/Tube heat exchanger
Safety Protection		Self-diagnosis function; freezer overload protection; high pressure switch; overload relay; thermal protection device and other safety protection
Closed Circulation System		The whole system is a full closed circulation, there is No oil mist at high temperature,pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		ZG3/4	ZG1	ZG1	ZG1	DN32 PN10	DN40 PN10	DN40 PN10	DN50 PN10	DN50 PN10
Dimension cm		4070130	4570160	4570160	70100175	70100175	80120185	150100185	200145205	200145205
Weight kg		110	120	160	195	265	395	615	1220	1400
Power max AC 380V 50HZ		7kW	9kW	12kW	17kW	28kW	41kW	65kW	101kW	136kW
Case material		Cold rolled sheet (REL7035)
Optional		220V 60HZ three phase，440V～460V 80HZ three phase

HOT WATER HEATING SYSTEM

Model-UST		5530 5530W	7530 7530W	A1030 A1030W	A1530 A1530W	A2530 A2530W	A3830 A3830W	A6030 A6030W	A9530 A9530W
Temp range		RT+10℃～+300℃
Control system		Feedback PID + Our special dynamic control calculation, PLC controller
Control Mode		Process temp control and jacket temp control mode
Temp difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		5 programs, each program can edit 40 steps
Communication protoco		MODBUS RTU Protocol,RS485 interface
Material temp feedback		PT100 OR 4~20mA or communication(normal: PT100)
Temp feedback		The temp of three points: the inlet and outlet of equipment, reactor material temperature(external temp sensor)
Medium temp acccuracy		±0.5℃						±1℃
Material temp accuracy		±1℃
Heating power kW		5.5	7.5	10	15	25	38	60	95
Cooling capacity	300 ℃	5.5	7.5	10	15	25	38	60	95
	200 ℃	5.5	7.5	10	15	25	38	60	95
	100 ℃	4	5	7	12	20	30	48	76
	65 ℃	1.8	2.2	3	5	8.5	12	19	30
Circulation pump max L/min bar		35	50	50	110	150	200	250	400
Circulation pump max L/min bar		2	2	2	2.5	2.5	2.5	2.5	2.5

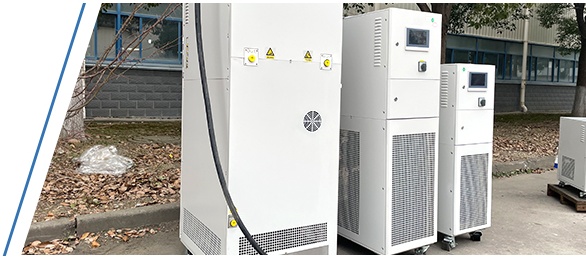

Appearance details

Operation Interface

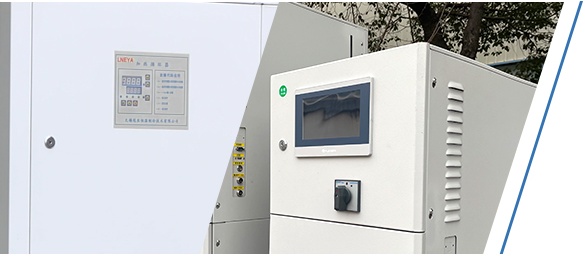

Key operation to input temperature setting temperature, or 7-inch color touch screen, record temperature curve, data export in Excel format

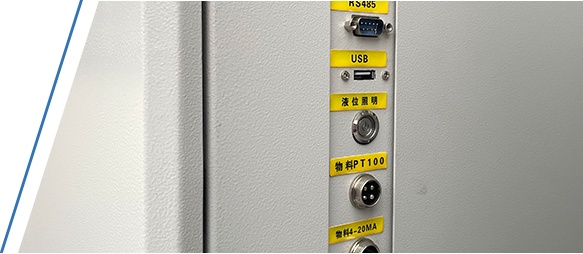

Data Communication Interface

Optionally equipped with various other analog interfaces and contact signals, Ethernet interface

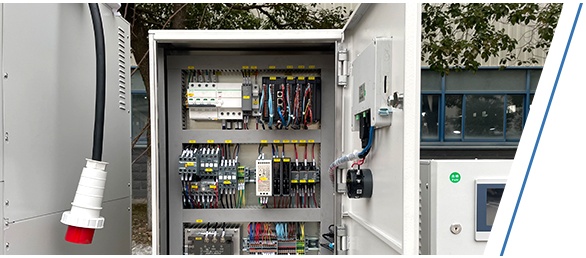

Safety Protection

Use Schneider and other brands of leakage circuit breakers, phase sequence phase failure protectors, liquid level protectors, high and low voltage protectors, high temperature protectors
