PROCESS CHILLER

Temp control & Flow contorl in the testing process of new energy vehicle components

Temperature control -40℃~150℃ air-cooling & water-cooling type

GET A QUOTE
INQUIRY @ Whatsapp

On the test benches in the automotive industry, highly dynamic temperature control systems are used for material and component testing, which can achieve precise regulation and rapid temperature changes. Only precise temperature management can provide reliable and repeatable results. The temperature control system provides a constant temperature or a complex temperature curve to the test bench directly or indirectly through a liquid medium. In addition to the temperature of the medium, temperature control systems also allow precise control of flow rates and operating pressures. Temperature control systems are used primarily in two ways: They simulate external ambient conditions in climate chambers or replace internal systems, such as the cooling circuit of an engine. The latter allows realistic conditions to be created on test benches, where test specimens are supplied with coolant according to operational requirements, such as in a vehicle.

LNEYA supply our customers in the automotive industry with high-performance devices. They not only dynamically cover the entire temperature range from -40°C to +160°C and the rapid temperature changes required on test benches.

LNEYA supports custom designs and gives quotes within 24 hours.

You can tell us where you need to use it. services@lneya.com

KRY -20℃~100℃ Single-channel chillers

Model KRY-255
KRY-255W		 KRY-275
KRY-275W		 KRY-2A10
KRY-2A10W		 KRY-2A15
KRY-2A15W		 KRY-2A25
KRY-2A25W		 KRY-2A38W
Temp Range -20℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100 Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k
Flow rate output 1～15 L/min 1～25 L/min 1～30 L/min 1～40 L/min 1～40 L/min 1～40 L/min
Flow rate accuracy ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min
Pressure display Using a pressure sensor, the pressure is displayed on the touch screen and can be controlled and adjusted from 0.2~2.5 bar
Heating capacity 5.5kW 7.5kW 10kW 15kW 25kW 38kW
Cooling capacity 100℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
20℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
0℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
-15℃ 2.8kW 3.8kW 4.6kW 7kW 12kW 16kW

KRY -20℃~100℃ Multi-channel water-cooling chillers

Model KRY-2A25W/6S KRY-2A38W/6S KRY-2A60W/6S
Temp Range -20℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k
Flow control accuracy/Group 1～25 L/min 1～25 L/min 1～40 L/min
Flow rate accuracy/group ±0.2 L/min ±0.2 L/min ±0.2 L/min
Number of fuid output groups 6 groups 6 groups 6 groups
Pressure control/group 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar
Flow pressure description The unit can control the flow individually or separately. Need to control different solutions at the same time (customized)
Heating capacity 15kW 25kW 38kW
Cooling capacity 100℃ 25kW 38kW 60kW
20℃ 25kW 38kW 60kW
0℃ 25kW 38kW 60kW
-15℃ 10kW 15kW 24kW

KRY -40℃~100℃ Single-channel chillers

Model KRY-455
KRY-455W		 KRY-475
KRY-475W		 KRY-4A10
KRY-4A10W		 KRY-4A15
KRY-4A15W		 KRY-4A25
KRY-4A25W		 KRY-4A38W KRY-4A60W
Temp Range -40℃～+100℃ -40℃～+100℃ -40℃～+100℃ -40℃～+100℃ -40℃～+100℃ -40℃～+100℃ -40℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100 Pt100 Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k
Flow rate output 1～25 L/min 1～25 L/min 1～25 L/min 1～40 L/min 1～40 L/min 1～40 L/min 1～40 L/min
Flow rate accuracy ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min
Flow description When the temperature control is lower than -30 degrees, the flow rate is controlled within 80% of the maximum value
Pressure display Using a pressure sensor, the pressure is displayed on the touch screen and can be controlled and adjusted from 0.2~2.5 bar
Heating capacity 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
Cooling capacity 100℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
20℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
0℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
-20℃ 2.8kW 4.5kW 6kW 10kW 16kW 25kW 35kW
-35℃ 1.2kW 1.8kW 2.5kW 4kW 6.5kW 10kW 15kW

KRY -40℃~100℃ Multi-channel water-cooling chillers

Model KRY-4A25W/6S KRY-4A38W/6S KRY-4A60W/6S
Temp Range -40℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k
Flow control accuracy/Group 1～25 L/min 1～25 L/min 1～40 L/min
Flow rate accuracy/group ±0.2 L/min ±0.2 L/min ±0.2 L/min
Number of fuid output groups 6 groups 6 groups 6 groups
Pressure control/group 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar
Flow description When the temperature control is lower than -30 degrees, the flow rate is controlled within 80% of the maximum value
Flow pressure description The unit can control the flow individually or separately. Need to control different solutions at the same time (customized)
Heating capacity 15kW 25kW 38kW
Cooling capacity 100℃ 25kW 38kW 60kW
20℃ 25kW 38kW 60kW
0℃ 25kW 38kW 60kW
-20℃ 14kW 22kW 35kW
-35℃ 5kW 8kW 13kW

Model KRY-475/2T
KRY-475W/2T		 KRY-4A15W/2T KRY-4A25W/2T KRY-4A38W/2T KRY-4A60W/2T
Temp Range -40℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k
Flow control accuracy/Group 1～25 L/min 1～40 L/min 1～40 L/min 1～40 L/min 1～40 L/min
Flow rate accuracy/group ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min
Number of fuid output groups 2 groups 2 groups 2 groups 2 groups 2 groups
Pressure control/group 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar
Flow pressure description The unit can control the flow individually or separately. Need to control different solutions at the same time (customized)
Heating capacity 7.5kW*2 10kW*2 15kW*2 25kW*2 38kW*2
Cooling capacity 100℃ 7.5kW*2 15kW*2 25kW*2 38kW*2 60kW*2
20℃ 7.5kW*2 15kW*2 25kW*2 38kW*2 60kW*2
0℃ 7.5kW*2 15kW*2 25kW*2 38kW*2 60kW*2
-20℃ 4.5kW*2 8.5kW*2 14kW*2 22kW*2 35kW*2
-35℃ 1.8kW*2 4kW*2 6.5kW*2 10kW*2 15kW*2

KRY 0℃~100℃ Single-channel chillers

Model KRY-25 KRY-55 KRY-75 KRY-A10 KRY-A15
KRY-A15W		 KRY-A25
KRY-A25W		 KRY-A38W KRY-A60W
Temp Range 0℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100 Pt100 Pt100 Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k
Flow rate output 2～20 L/min 2～25 L/min 2～25 L/min 2～25 L/min 2～25 L/min 2～25 L/min 5～50 L/min 5～50 L/min
Flow rate accuracy ±0.2 L/min
Pressure display Using a pressure sensor, the pressure is displayed on the touch screen and can be controlled and adjusted from 0.2~2.5 bar
Heating capacity 2.5kW 5.5kW 7.5kW 10kW 15kW 15kW 25kW 38kW
Cooling capacity 100℃ 2.5kW 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
20℃ 2.5kW 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
5℃ 1.8kW 3.8kW 5.2kW 7kW 11kW 18kW 27kW 42kW

KRY 0℃~100℃ Multi-channel water-cooling chillers

Model KRY-A25W/6S KRY-A38W/6S KRY-A60W/6S
Temp Range 0℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k
Flow control accuracy/Group 2～25 L/min 2～25 L/min 2～25 L/min
Flow rate accuracy/group ±0.2L/min
Number of fuid output groups 6 groups 6 groups 6 groups
Pressure control/group 0.2bar～2.5bar 0.2bar～2.5bar 0.2bar～2.5bar
Flow pressure description The unit can control the flow individually or separately. Need to control different solutions at the same time (customized)
Heating capacity 15kW 25kW 38kW
Cooling capacity 100℃ 25kW 38kW 60kW
20℃ 25kW 38kW 60kW
5℃ 18kW 27kW 42kW

Model KRY-25/2T KRY-55/2T KRY-75/2T KRY-A10/2T KRY-A15W//2T KRY-A25W/2T KRY-A38W/2T KRY-A60W/2T
Temp Range 0℃～+100℃
Temp control accuracy ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃ ±0.3℃
Temp feedback Pt100 Pt100 Pt100 Pt100 Pt100 Pt100 Pt100 Pt100
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k
Flow rate output 2～20 L/min 2～25 L/min 2～25 L/min 2～25 L/min 2～25 L/min 2～25 L/min 5～50 L/min 5～50 L/min
Flow rate accuracy ±0.2 L/min
Pressure display Using a pressure sensor, the pressure is displayed on the touch screen and can be controlled and adjusted from 0.2~2.5 bar
Heating capacity 2.5kW*2 5.5kW*2 7.5kW*2 10kW*2 15kW*2 15kW*2 25kW*2 38kW*2
Cooling capacity 100℃ 2.5kW*2 5.5kW*2 7.5kW*2 10kW*2 15kW*2 25kW*2 38kW*2 60kW*2
20℃ 2.5kW*2 5.5kW*2 7.5kW*2 10kW*2 15kW*2 25kW*2 38kW*2 60kW*2
5℃ 1.8kW*2 3.8kW*2 5.2kW*2 7kW*2 11kW*2 18kW*2 27kW*2 42kW*2

Suitable for more simulation test temperature control

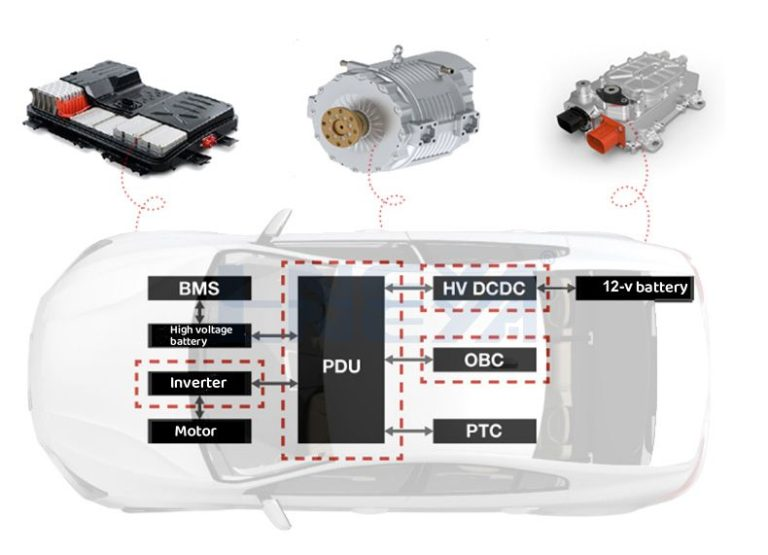

Application: new energy battery packs, battery modules, batteries, motors and controllers, chargers, DC/DC converters, electronic pumps

Advantages

  • Fully enclosed circulation pipeline
  • Antifreeze temperature up to 150°C
  • Temperature gradient change
  • Outlet temperature limit

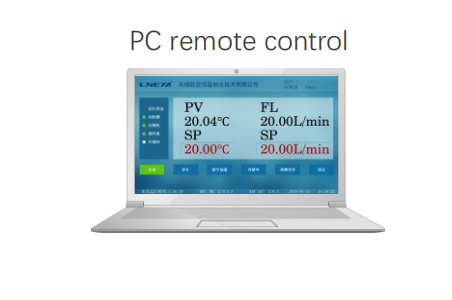

  • Visualization, data storage, flexible connection test platform
  • Proportional control valve to control flow
  • Control temperature, control flow, control pressure

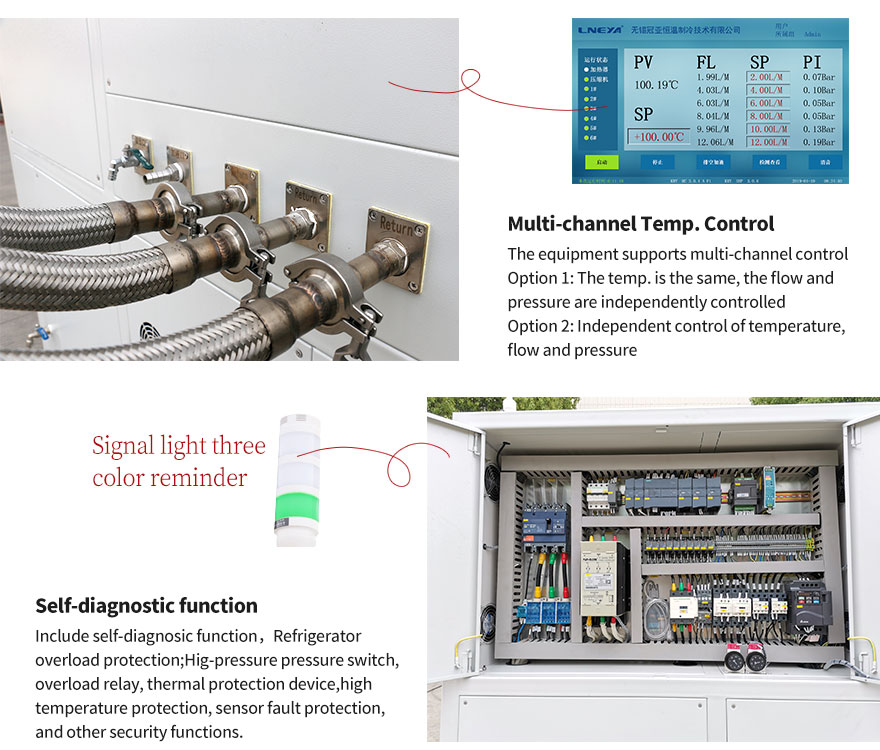

Appearance details

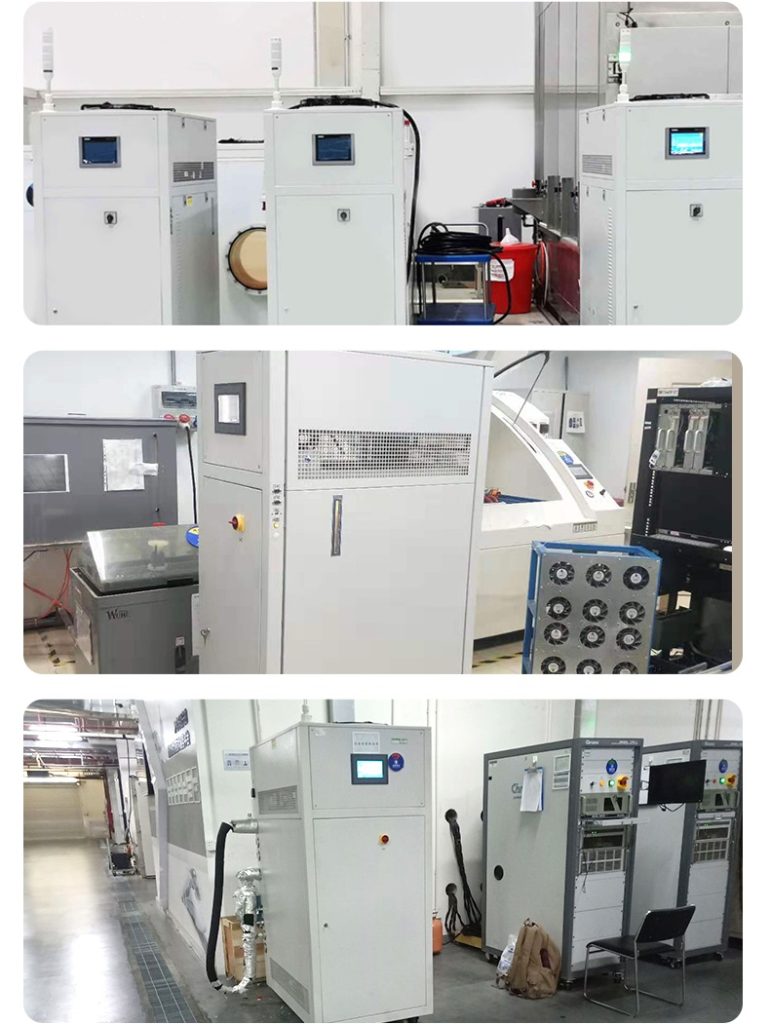

application platform case
