Dynamic Temperature Control System

Chiller Heater Combo -120℃~350℃

— SUNDI | WTD | TCU| HR SERIES

Get a quote

Advantages

  • Cooling power 0.5kW~1200kW
  • Heating power 2kW~200kW
  • High-precision, intelligent temperature control
  • Multifunctional alarm system and safety features
  • 7-inch, 10-inch color TFT touch screen graphic display
  • With magnetic drive pump, there is no shaft seal leakage problem
  • High-temperature cooling technology, which can directly cool down from 300°C
  • Efficient production stability and reproducible results
  • Fully enclosed system, no need to replace the liquid medium

(SUNDI series)

Temperature Control Range: -120°C to +350°C

loading…

已经是到最后一篇内容了！

SUNDI series  -10℃～+150℃  -25℃～+200℃  -45℃～+250℃  -60℃～+250℃  -80℃～+250℃   -90℃～+250℃   -100℃～+100℃
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Heating power 3.5kw~15kw 3.5kw~200kw 2.5kw~200kw 2.5kw~60kw 3kw~80kw 5.5kw~80kw 5.5kw~80kw
Cooling
capacity		 2.1kw~15kw 1.8kw~200kw 0.25kw~200kw 0.25kw~60kw 0.3kw~80kw 0.5kw~80kw 0.75kw~80kw
Cooling water
@20℃ 1.5bar~4bar		 1300L/H~3600L/H 1500L/H~24m³/H 900L/H~46m³/H 1100L/H~20m³/H 1800L/H~30m³/H 3400L/H~40m³/H 3400L/H~50m³/H
Power 380V 50HZ 6.7kw~23kw 6.7kw~260kw 4kw~309kw 5kw~110kw 9.5kw~177kw 16kw~118kw 26kw~200kw

(WTD series)

Temperature Control Range: -70°C to +300°C

（Micro channel / tube reactors specialized）

Specialized design for micro channel (small liquid holding capacity, strong heat exchange capacity, circulation system high pressure drop)

Model WTD-120M WTD-255 WTD-455 WTD-755 WTD-275V WTD-255-2T  Double Temp range
WTD-255W-2T  Double Temp range		 WTD-455-2T  Double Temp range
WTD-455W-2T  Double Temp range		 WTD-2A38W-2TPEX WTD-4A38W-2TPEX WTD-7A50WPEX
Temp Range -5°C～120°C -25°C～200°C -45°C～250°C -70°C～200°C -20°C～300°C -25°C～200°C   -45°C～250°C   -25～200°C   -25～200°C -45～200°C -45～200°C -70～200°C
Temp accuracy ±0.3℃ ±0.5℃
Temp resolution 0.1K
Heating capacity 2kW 5.5kW 5.5kW 5.5kW 7.5kW 5.5kW 38kW
Cooling  capacity  kW 1 kW 5.5kW 5 kW 5 kW 7.5kW 1.5kW 5.5kW 5.5kW 5.5kW 15kW 15kW 20kW 20kW 50kW
Power 380V 50HZ 220V 3.1kW  9.5kW  MAX 10kW  MAX 12kW  MAX 15kW  MAX 19kW  MAX 20kW  MAX 110kW  MAX 125kW MAX 120kW MAX

Cooling Heating Circulators

Temperature Control Range: -45°C to +250°C

(Only controlling oil temperature without controlling material temperature)

loading…

已经是到最后一篇内容了！

TCU Temperature Control Units

(Pharmaceutical and Chemical workshop production level)

Temperature control range: -120°C to +250°C

Application: chemical, pharmaceutical, petrochemical, biological and other industries, large-scale production-level temperature control requirements, such as various reactors, distillers, extraction systems, fermentation tanks, etc. for Chinese-style workshops and pharmaceutical and chemical plant production.

loading…

已经是到最后一篇内容了！

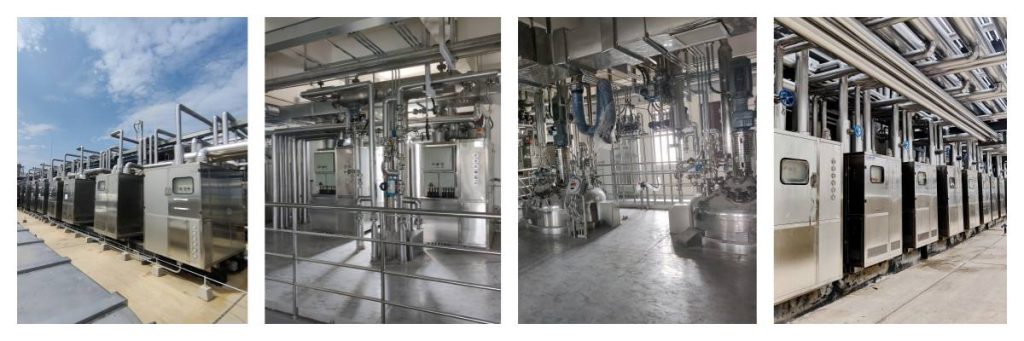

TCU installation site for integrated temperature control equipment of reaction kettle system in pharmaceutical enterprises

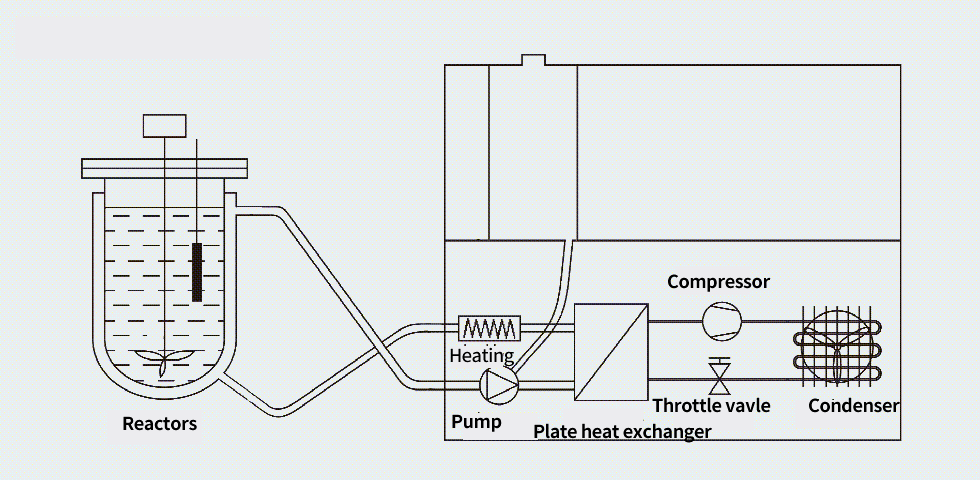

Principle

A specially designed lag estimator (model-free self-building tree algorithm) generates a dynamic signal yc(t) instead of the process variable y(t) as a feedback signal. Generate an e(t) signal to the controller, so that the controller does not have a large hysteresis in predicting the control effect, so that the controller can always generate an appropriate control signal. That is to say, this dynamic signal yc(t) can keep the feedback loop working normally even if there is a large lag.

Applications

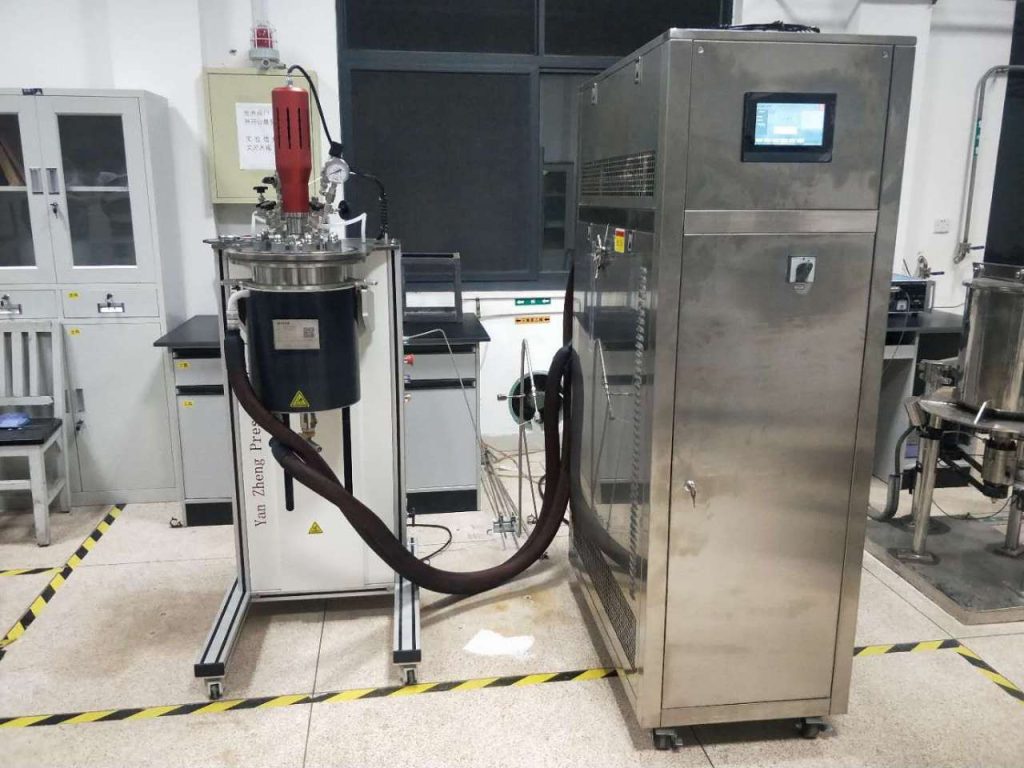

  1. Dynamic temperature control of high pressure reactor
  2. Dynamic temperature control of double-layer glass reactor
  3. Dynamic temperature control of double-layer reactor
  4. Microchannel Reactor Temperature Control
  5. Distillation system temperature control
  6. Material aging test at low temperature and high temperature
  7. Combinatorial chemical constant temperature control

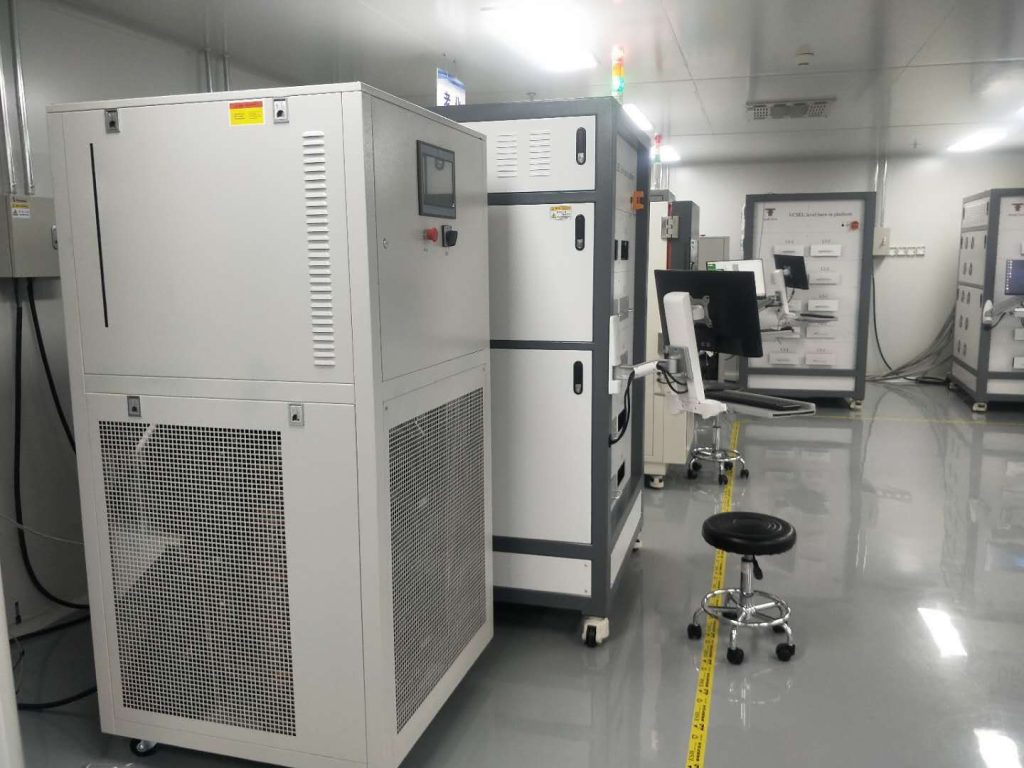

  8. Semiconductor equipment cooling and heating
  9. Vacuum chamber cooling and heating control

Chillers sold worldwide

LNEYA’s industrial chiller cooling equipment is sold globally. Singapore, Malaysia, Japan, South Korea, Australia, various European countries such as Germany, Netherlands, UK, United States, Belgium, Czech Republic, Netherlands, France，India and Qatar etc.
