LOW TEMPERATURE CHILLERS
Temperature Control -150℃~90℃
FOR INDUSTRIAL PRODUCTION/LABORATORY REACTION
Heat Up Fast, Cool Down Quicker!
Get chiller related information TCU Heating Circulators Recirculating Chiller 产品分类菜单
Temperature Control -150℃~90℃
FOR INDUSTRIAL PRODUCTION/LABORATORY REACTION
Heat Up Fast, Cool Down Quicker!
LNEYA Provides Air cooled & water cooled chillers
| Model | LT -25℃～30℃ | LT -45℃～30℃ | LT -60℃～-30℃ | LT -80℃～-40℃ | |
| Cooling capacity -15℃ |
1.5kw~5kw@-15℃ | 0.7kw~2.5kw@-35℃ | 1.3kw~4.8kw@-40℃ | 0.7kw~2.5kw@-60℃ | |
| Circulation Pump Flow MAX |
30L/min 1.6bar | ||||
| Refrigerant | R-404A / R507C | R-404A / R507C | R-404A/R23 | R-404A/R23 | |
| Temp control accuracy | ±0.5℃ | ||||
| Temperature feedback | Temperature feedback PT100 (inlet temperature, outlet temperature) | ||||
| Compressor | Highly, Mitsubishi, Panasonic and other compressors | ||||
| Evaporator | Plate Heat Exchanger | ||||
| Operation panel | 4.3-inch color touch screen displays set temp and measured temp, records temp curve, and exports data in Excel format | ||||
| Safety protection | Self-diagnosis function; refrigerator overload protection; high and low pressure sensors, overload relays, thermal protection devices and other safety protection functions |
||||
| Power | AC220V / AC380V/ AC460V | ||||
| Shell material | Cold rolled sheet (REL7035) | ||||
| Communication protocol | Communication protocol MODBUS RTU protocol RS485 interface | ||||
| Model | LTZ -40℃~90℃ | LTZ 5℃~30℃ | LTZ -25℃~30℃ | LTZ -45℃~20℃ | LTZ -60℃~-30℃ | LTZ -80℃~-50℃ | LTZ -115℃~-80℃ |
| Cooling Capacity | 0.7KW~11.5KW | 23KW~300KW | 7KW~117.5KW | 2.85KW~61.56KW | 4.9KW~93.2KW | 3.7KW~78.5KW | 0.6KW~2.8KW |
| Heating Power | 2.5kW~10KW | ||||||
| Temp control accuracy | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ |
| Circulation Pump Flow MAX |
30L/min 1.6bar | ||||||
| Compressor | Famous brand compressor | ||||||
| Evaporator | Plate Heat Exchanger | ||||||
| Operation panel | 7-inch color touch screen displays set temp and measured temp, records temp curve, and exports data in Excel format | ||||||
| Safety protection | Self-diagnosis function; refrigerator overload protection; high and low pressure sensors, overload relays, thermal protection devices and other safety protection functions. | ||||||
| Power | AC380V 50HZ/ AC460V 50HZ | ||||||
| Shell material | Cold rolled sheet (REL7035) | ||||||
| Communication protocol | Communication protocol MODBUS RTU protocol RS485 interface | ||||||
Advantages

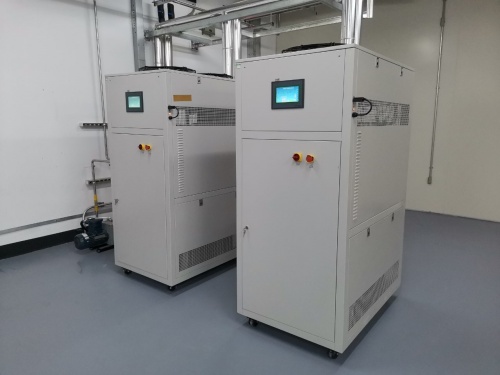

Chiller appearance
1.The basic principle of Ultra-Low Temp. Water-Cooled Chiller is that under ultra-low temperature, the movement of molecules is slowed down until the surface of the trapped and frozen cryogenic coiled tubes is slowed down, and the vapor is easy to be arrested, set and frozen, and the capture rate is high.
2.The secondary supercooling technology is adopted, with rapid refrigeration and low temperature.

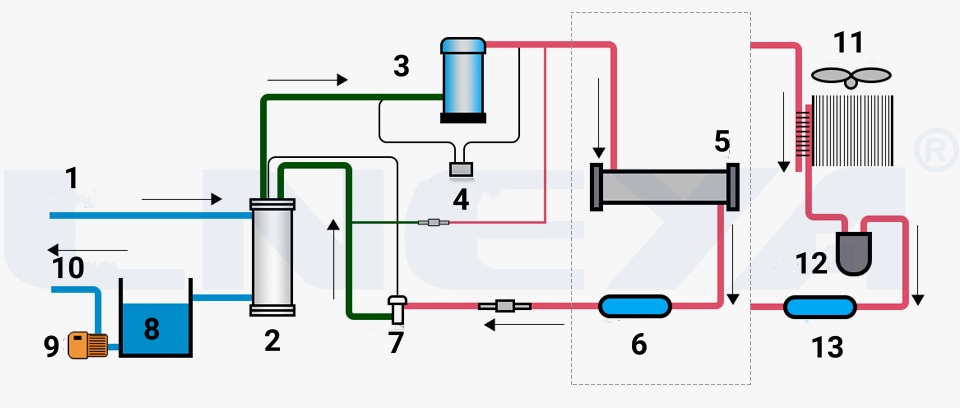

Operation principle
LNEYA’s water cooled chiller does not require a cooling tower, so it is very simple to install and can be moved according to demand, making it convenient and suitable for situations where there is a lack of water sources without installing a water tower.
Air cooled chillers require less maintenance than water-cooled chillers. Do not require a cooling tower or a condenser water pump.
Consume approximately 10% more power than a water-cooled unit due to wet surfaces transferring heat better than dry surfaces.
WHAT PROCESS WILL YOU USE IN?
Vacuum chamber ?Injection water system ?Extraction system ?Laboratory testing ?CNC cooling ?Condensation System?
Chillers sold worldwide
LNEYA’s industrial chiller cooling system is sold globally. Singapore, Malaysia, Japan, South Korea, Australia, various European countries such as Germany, Netherlands, UK, United States, Belgium, Czech Republic, Netherlands, France，India and Qatar etc.
