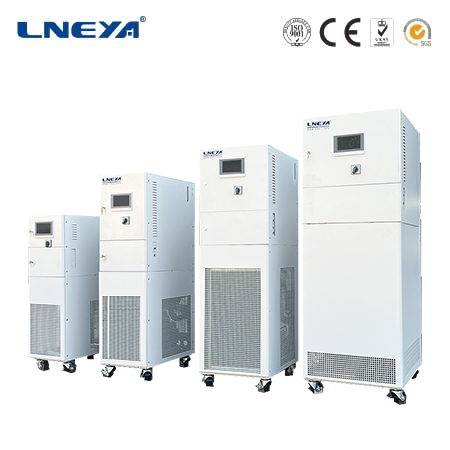

Low Temperatuer Water Chiller

Model

FLT-803W

FLT-805W

FLT-806W

FLT-808W

FLT-810W

Temp Range

-80℃～+80℃

Temperature control accuracy

±0.1℃

Flow Control

7～25L/min

12～45L/min

The flow control is adjusted by a frequency converter, and the speed is automatically adjusted according to the feedback signal of the flow sensor. The maximum pressure of the circulating pump is 6bar.

Cooling capacity@-70℃

0.6KW

1KW

1.5KW

2KW

3KW

Heating power

2KW

2KW

2KW

3.5KW

3.5KW

Internal Circulation fluid volume

4L

5L

6L

8L

10L

Expansion tank volume

10L

10L

15L

15L

20L

Thermal medium

Fluorinated liquid

Ingress and egress interface

ZG1/2

ZG1/2

ZG3/4

ZG3/4

ZG3/4

Cooling water interface

ZG3/4

ZG3/4

ZG3/4

G1

G1

Cooling Water @20℃

1.8m3/h

2.5m3/h

3m3/h

5m3/h

6m3/h

Power Supply

380V 50HZ

Breaker

25A

25A

32A

40A

50A

Model

FLT-1002W

FLT-1004W

Temp Range

-100℃～+80℃

-100℃～+80℃

Temp Accuracy

±0.1℃

±0.1℃

Flow Control

7～25L/min

12～45L/min

The flow control is adjusted by a frequency converter, and the speed is automatically adjusted according to the feedback signal of the flow sensor. The maximum pressure of the circulating pump is 6bar.

Cooling Capacity@-90℃

1.5KW

3KW

Heating Power

3.5KW

5.5KW

Internal circulation fluid volume

5L

8L

Expansion tank volume

10L

15L

Thermal medium

Fluorinated liquid

Ingress and egress interface

G3/4

G3/4

Cooling water interface

G3/4

G1

Cooling water @20℃

50L/min 2bar~7bar

100L/min 2bar~7bar

Power

380V 50HZ

380V 50HZ

Breaker

32A

63A

Weight

700*800*1850

800*1200*1850
